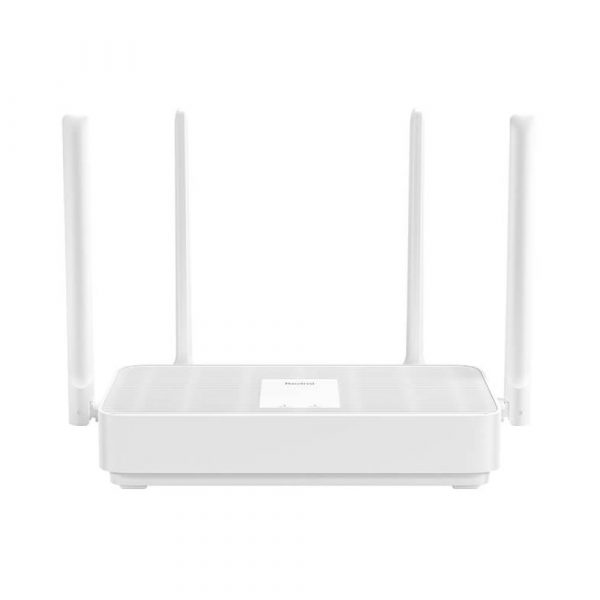

Xiaomi Mi Router AX1800

6,490 L



Mi Router AX1800

5-core WiFi6, kësaj i thonë shpejtësi.

Ruter për shpërndarjen e valëve të internetit me procesor 14 nm, memorje 256 MB dhe internet 52% më të shpejtë WiFi6.

Ka stok

SKU: CNG1862-W Kategori: ,

Përshkrim

Informacion i detajuar

Peshë
1 kg
Brand
Color

White

External dimensions

247X141x180 mm

Processor

IPQ6000 quad-core A53 1.2 GHz CPU

Network Acceleration

Single-core 1.5 GHz NPU

Memory

256 MB

2.4G Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol with a theoretical maximum speed of 574 Mbps)

5G Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed up to 1201 Mbps)

Antennas

4x external antennas

Cooling

Passive cooling

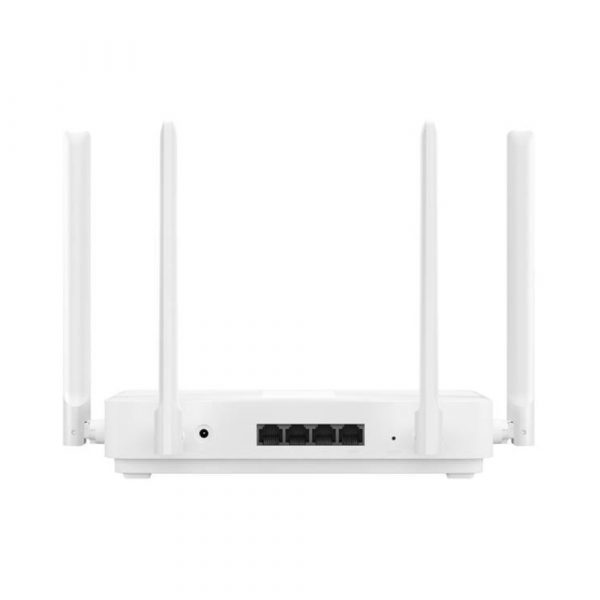

Product ports

1x 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
3x 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)

LED indicator

2x (System indicator x1, Internet indicator x1)

System reset button

1x

Power supply port

1x

Protocol standards

IEEE 802.11 a/b/g/n/ac/ax,
IEEE 802.3/3u/3ab

Certification standards

GB/T9254-2008;
GB4943.1-2011

Wireless specifications
Dual band

2.5 GHz and 5 GHz

Modulation

11B:DSSS:DBPSK(1 Mbps), DQPSK(2 Mbps), CCK(5,5/11 Mbps)
11A/g:OFDM:BPSK(6/9 Mbps), QPSK(12/18 Mbps), 16QAM(24/36 Mbps),
64QAM(48/54 Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.Rate set: MCS0-MCS15
11AC:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
Rate set: MSC0-MCS9 (supports 2 streams)
11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Rate set: MCS0-MCS11 (2 streams supported)

Software parameters
Operating system

OpenWRT widely customisable intelligent router operating system MiWiFi ROM

WiFi Encryption

WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (blacklist and whitelist),
SSID hiding, smart unauthorized access prevention

Network Security:

Access control (blacklist, whitelist), guest network, DoS, SPI firewall,
IP and MAC Address binding, IP and MAC filtering

Manage applications

Supports Web, Android, iOS

Accessories
Power supply

1x (12 V/1 A)

Operating environment
Operating environment temperature

0°C–40°C

Operating humidity

10%–90% RH (non-condensing)

Storage temperature

-40°C–70°C

Storage humidity

5%–90% RH (non-condensing)

Vlerësimet

Nuk ka asnjë vlerësim.

Behuni i pari te lini një vlerësim

Informacione për paketimin

Main unit × 1
Network cable x 1
Instruction manual × 1
Power supply cable × 1
